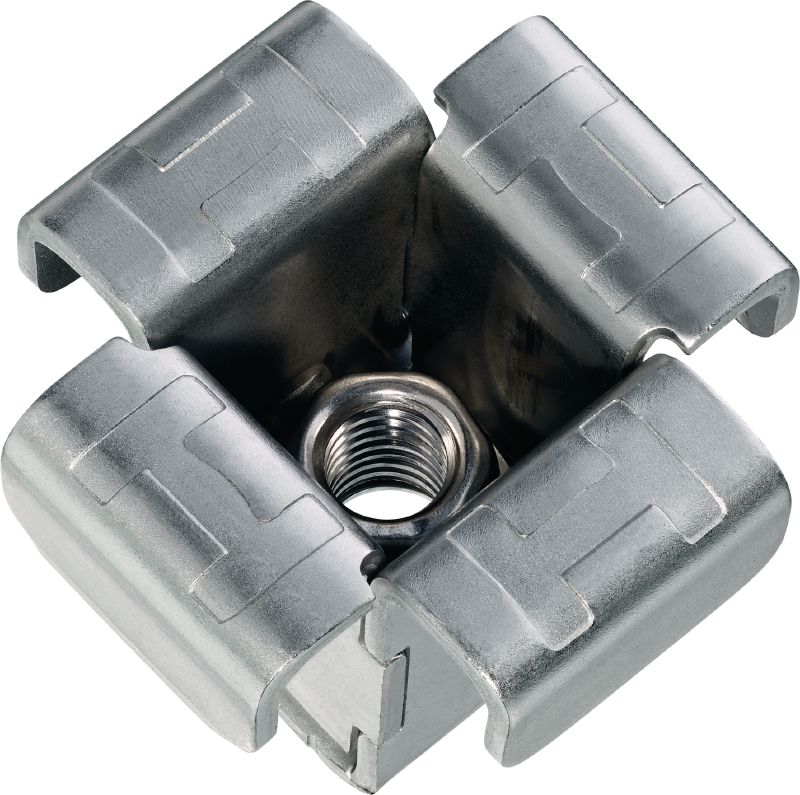

X-FCS Grating saddle clip
New product PremiumItem #r8366674
Grating saddle clip with tensile and shear resistance
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 460, DX 5, DX 6
Share
Features
- Body with special key design to provide excellent robustness
- Grating fastener with tensile and shear resistance capacity

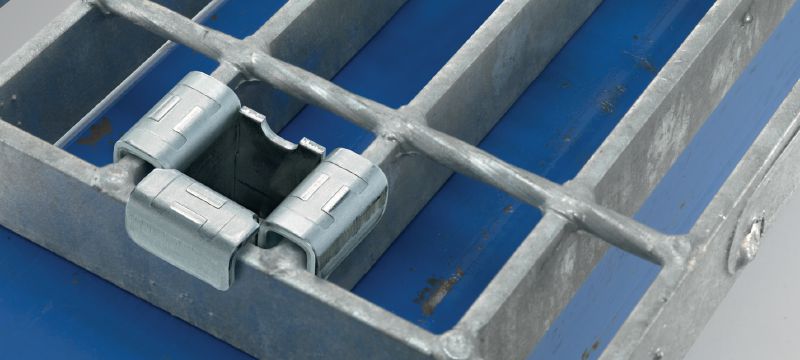

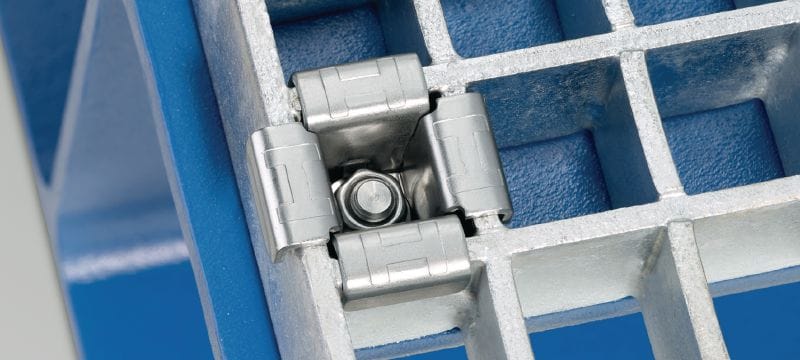

- Two versions – grating fastening saddle with three ears for rectangular grating, or four ears for square grating
- Size suitable for most common grating sizes
- Tightened with a standard M12 nut setter – for ease, speed and reliability
Applications
- Fastening grating in shear-relevant zones
- Fastening grating subject to equipment movement, e.g. trolley zone
- Fastening grating vertically, e.g. during transportation and launch
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- LR Type Approval LR2410665TA for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English, [ 783.4 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- DNV Type Approval TAS00001UJ for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine and industrial environments, English, [ 209.6 kB ]
- BV Approval 54054-B0 for X-BT-GR, X-BT-MR and X-BT-ER fastening system, English, [ 577.5 kB ]
