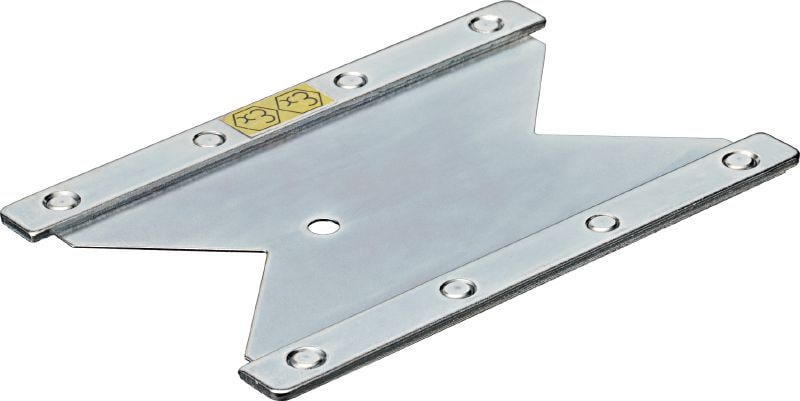

CFS-T EX anchor plate sets Anchor plate sets to secure cable modules within a transit frame in potentially explosive atmospheres

Move cursor over image to zoom.

Click on image to zoom.

CFS-T EX anchor plate sets Anchor plate sets to secure cable modules within a transit frame in potentially explosive atmospheres Applications 1

Move cursor over image to zoom.

Click on image to zoom.

CFS-T EX anchor plate sets

Item #r1961018

Anchor plate sets to secure cable modules within a transit frame in potentially explosive atmospheres

Temperature resistance range: -4 - 167 °F

More technical data

Share

Customers also searched for MCT, cable seal, cable transit, multi cable transit system or mass cable transit

Features & Applications

Features & Applications

Features

Sealing against static and dynamic pressure
Easier installation of modules and insertion of the wedge seal
Anchor plates available in galvanized steel, stainless steel grade 1.4301 (AISI 304) or aluminum
Fixing anchor plates available in galvanized steel or stainless steel grade 1.4301 (AISI 304)

Applications

For use in potentially explosive atmospheres
Industries affected by the ATEX directive, such as the petrochemical and chemical industries
Oil and gas platforms which are not covered by the IMO resolution

CCS LOGO_APC_70x50

For approval or certificate information, please see individual items.
