X-MW ALH L Wire hanger system
New product
Ultimate
Item #r13332525
Wire hanger system for spiral HVAC ducting and lighting applications, installed using powder-actuated fastening tools
- Application: HVAC connections
- Material: Carbon steel
- For use with (tools): DX 351, DX 460, DX 5, DX 6
Share
Features & Applications
Features & Applications
Features
- Shorter installation time – wire rope suspensions are a faster alternative to threaded rod
- Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler
- Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits
- Can be fastened while standing on the floor using the DX pole tool – safer method of installation avoiding lifts and ladders

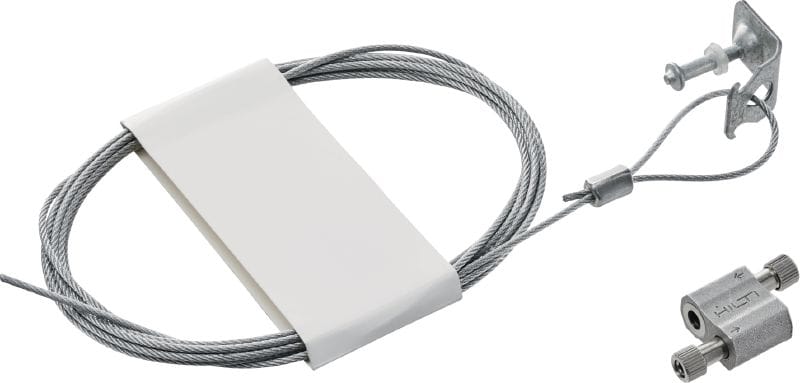

- All you need in one sales box (lock, pre-cut wires and nail clip)
Applications
- Suspending spiral HVAC duct from concrete

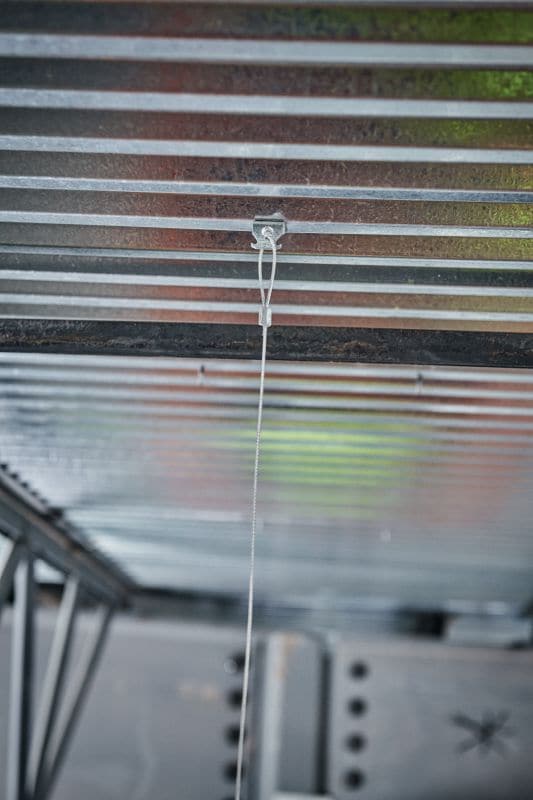

- Suspending electrical lighting from the ceiling
- Suspending security attachments (secondary attachment point to work if first attachment point fails)
- Up to 100 lbs allowable load values
- Suitable for use in dry, indoor environments only
For approval or certificate information, please see individual items.
