X-ENP Metal deck fasteners
New product UltimateItem #r6230

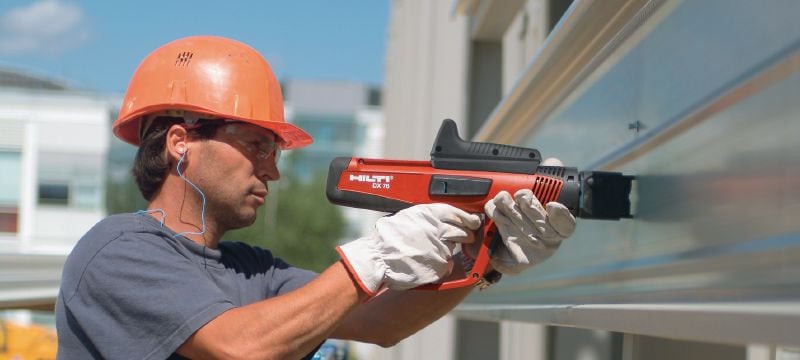

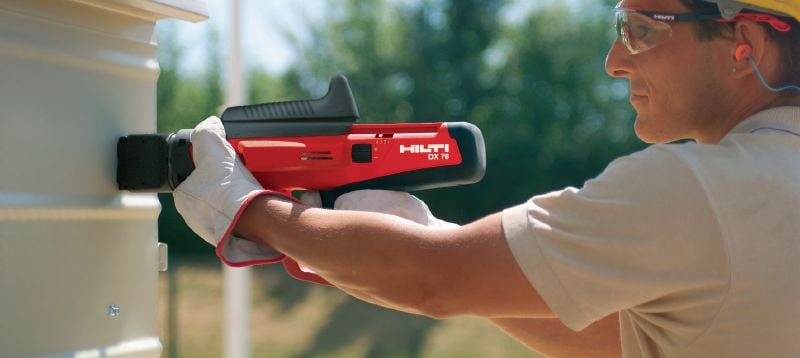

Single nail for fastening metal decks to steel structures with powder-actuated nailers
- Base materials: Steel
- Minimum thickness of base material (steel): 1/4 in
- Corrosion protection: Galvanized zinc coated <20 µm
Share
Customers also searched for metal roof deck nail, decking fastener or powder actuated
Features
- A much faster and safer fastening system compared to welding
- Fully knurled tip provides high holding capacity
- High application limits – can be used on steel with a thickness of at least 6 mm (1/4")
- Proven system and has several worldwide approvals for siding and decking
- No predrilling required, even on thick steel
Applications
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for siding
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- FM 3054498 for Hilti steel deck fasteners, English, [ 168.7 kB ]
- UL R13203 for roof deck fasteners, English, [ 64.8 kB ]
- FM Certificate of Compliance for Steel Roof Deck Fasteners for Wind Rating 1-90 or Less, [ 402.5 kB ]
- ABS Approval for Carbon Steel Powder-Actuated Fasteners, English, [ 27.1 kB ]
- SDI DDM03 Appendix VI with X-ENP-19 L15, English, [ 363 kB ]
- ICC ESR-2197 for Steel Deck and Concrete-Filled Deck Diaphragm Attachment, English, [ 1001.6 kB ]
- ICC ESR-2776 for Steel Deck Fasteners and Sidelap Connectors, English, [ 1.6 MB ]
- FM Certificate of Compliance for Steel Roof Deck Fasteners for Wind Rating Above Class 1-90, English, [ 306.6 kB ]
- FM 3029102 for steel deck and sidelap fasteners for securement of steel form deck, English, [ 559.3 kB ]
-
- CAD Details (PDF) for Hilti Deck Fastening Systems Structural General Notes and Selector Tables, English, [ 351.8 kB ]
- CAD Details (PDF) for Hilti Deck Fastening Systems with Structural General Notes and Plan Sheets, English, [ 2.2 MB ]
- CAD Details (DWG) for Hilti Deck Fastening Systems with Structural General Notes and Plan Sheets, English, [ 878.4 kB ]
- CAD Details (DWG) for Hilti Deck Fastening Systems Structural General Notes and Selector Tables, English, [ 368.3 kB ]
